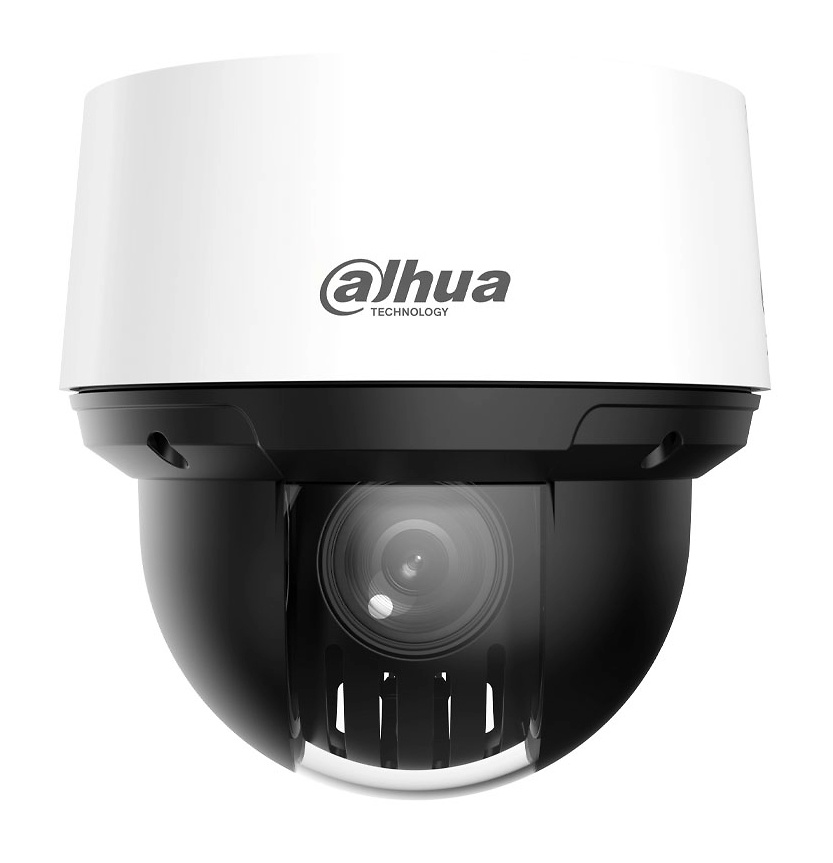

SD4A425DB-HNY | DAHUA - Cámara Domo IP WizSense | 4 Mpx | Zoom óptico 25X (5~125 mm) | Smart IR 100 metros

Cámara

Sensor de imagen

CMOS de 1/2,8"

píxel

4 megapíxeles

máx. Resolución

2560 × 1440

ROM

128 MB

RAM

512 megabytes

Velocidad de obturación electrónica

1/1s–1/30000s

Sistema de escaneo

Progresivo

mín. Iluminación

Color: 0.005lux@F1.6
B/N: 0.0005lux@F1.6
0Lux (IR activado)

Distancia de iluminación

100 m (328,08 pies) (IR)

Control de encendido/apagado del iluminador

Zoom Prío; Manual; Auto; Apagado

Número de iluminador

6 (IR)

Lente

Longitud focal

5 mm–125 mm

máx. Abertura

F1.6–F3.6

Campo de visión

Altura: 51,9°–3,0°
Altura: 39,7°–2,2°
Profundidad: 63,1°–3,7°

Zoom óptico

25×

Control de enfoque

Auto; Semiautomatico; manual

Distancia de enfoque cercano

0,5 m–5 m (1,64 pies–16,40 pies)

control de iris

Auto; manual; fijado

Distancia DORI

Detectar

Observar

Reconocer

Identificar

2500 m (8202,10 pies)

987,5 m (3239,83 pies)

500 metros

(1640.42 pies)

250 metros

(820,21 pies)

PTZ

Rango de giro/inclinación

Panorámica: 0° a 360° sin fin
Inclinación: –5° a +90°, giro automático 180°

Velocidad de control manual

Panorámica: 0,1°/s–240°/s
Inclinación: 0,1°/s–160°/s

Velocidad preestablecida

Panorámica: 240°/s; Inclinación: 160°/s

Preestablecido

300

Recorrido

8 (hasta 32 presets por tour)

Patrón

5

Escanear

5

Memoria de apagado

Sí

Movimiento inactivo

Patrón; Preestablecido; Escanear; Recorrido

Protocolo PTZ

DH-SD

Inteligencia

IVS (Protección Perimetral)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection, face track box, capturing pictures, face enhancement; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing and quality first

Auto Tracking

Yes

SMD

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF(352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 720p/CIF @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96Kbps - 14848Kbps

H.265: 38Kbps - 8960Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM; AAC

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP; ;SAMBA

Interoperability

CGI; SDK; ONVIF (Profile S&G&T); P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions

Management Software

DMSS; DSS PRO

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

12 VDC/2 A ± 10% (included)
PoE+ (802.3at)

Power Consumption

Basic: 9.5 W
Max.: 21.5 W (illuminator on + fan on + PTZ)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤ 95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

170.4 mm × Φ171.1 mm (6.71" × Φ6.74")

Net Weight

2.5 kg (5.51 lb)

Gross Weight

3.2 kg (7.05 lb)
