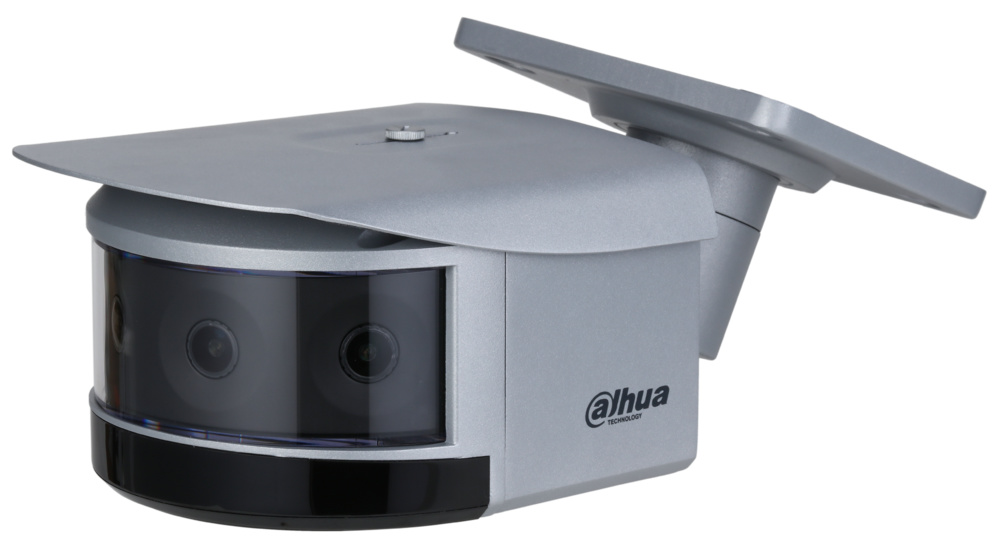

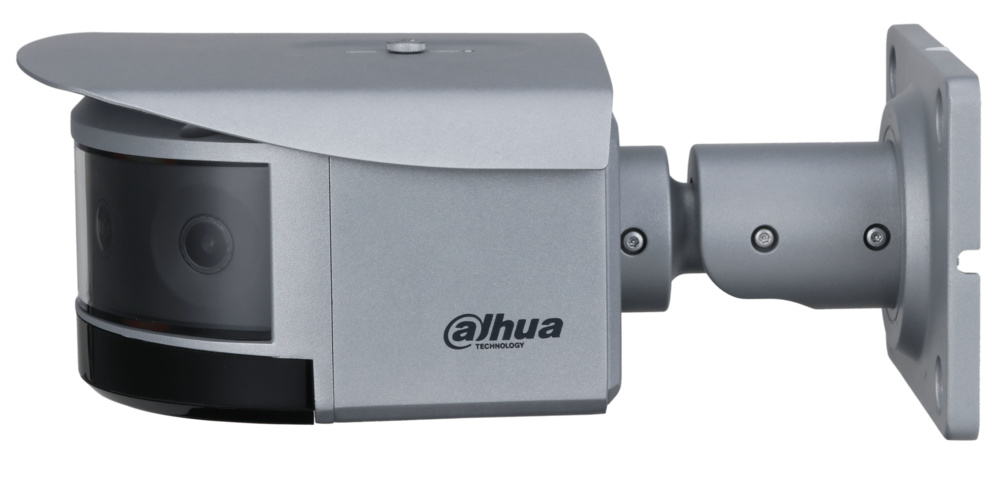

IPC-PFW81642P-A180-DC12AC24V | DAHUA - Cámara IP panorámica | 4 Mpx x 4 | Smart IR 30 metros | Detección Perimetral

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

5520 (H) × 2700 (V)

ROM

8 GB

RAM

4 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

8 (IR LED)

Pan/Tilt/Rotation Range

Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

H: 180°; V: 100°

Iris Control

Fixed

Close Focus Distance

1.3 m (4.27 ft)

DORI Distance

Detect

Observe

Recognize

Identify

58.9 m

(193.24 ft)

23.6 m

(77.43 ft)

11.8 m

(38.71 ft)

5.9 m

(19.37 ft)

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Tripwire; Intrusion

Vehicle Density

Vehicle density; parking upper limit; vehicle congestion alarm

Crowd Distribution Map

Crowd map, global people counting; people counting in area

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main Stream: 5520 × 2700@(1-25/30 fps)
Sub Stream: 1280 × 620@(1-25/30 fps)
Third Stream: 1920 × 940@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

5520 × 2700; 4600 × 2252; 3840 × 1880; 2880 × 1408; 1280 × 620; 1024 × 496; 1920 × 940; 1366 × 668

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96 kbps–16384 kbps
H.265: 38 kbps–12544 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Privacy Masking

8 areas

Audio

Audio Compression

G.711a; G.711Mu; G.726: G.723; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; traffic congestion; parking upper limit

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

With plug-in:
IE: IE 9 and later
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later
Without plug-in:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later

Management Software

Smart PSS; DSS; DMSS

Cyber Security

Configuration encryption;trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Analog Output

1 channel (CVBS output:BNC)

Alarm Input

2 channels in: 5 mA 3–5 VDC

Alarm Output

2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC

Power

Power Supply

12 VDC/24 VAC/PoE+ (802.3at)

Power Consumption

Basic: 8.2 W (12 VDC); 9.7 W (24 VAC); 9.7 W (PoE)
Max. (WDR + IR intensity + intelligence on+ max. stream): 21.5 W (12 VDC); 24.2 W (24 VAC); 24.2 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal + plastic

Product Dimensions

298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79" × 4.74") (L × W × H)

Net Weight

3.05 kg (6.72 lb)

Gross Weight

3.79 kg (8.36 lb)
