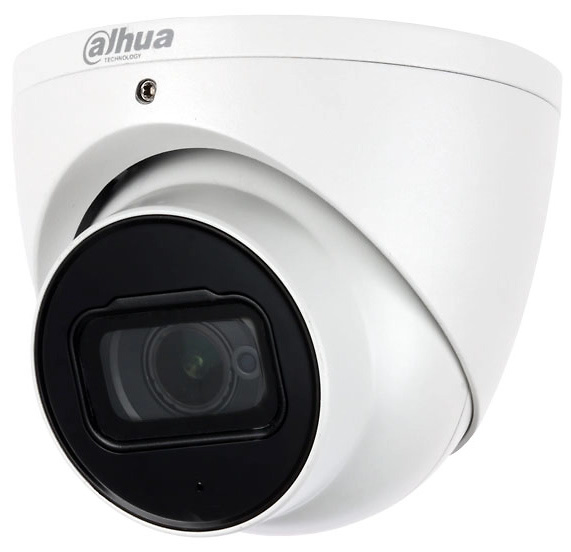

HAC-HDW1801TP-Z-A-27135-S2 | DAHUA - Cámara domo StarLight 4 en 1 | 8 Mpx

Camera

Pixel

8 MP

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F1.5 (Color, 30 IRE)
0.001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 114°–32°
Vertical: 58°–17°
Diagonal: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

85.3 m (279.86 ft)

34.1 m (111.88 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

T

280.0 m (918.64 ft)

112.0 m (367.45 ft)

56.0 m (183.73 ft)

28.0 m

(91.87 ft)

Video

Video Frame Rate

CVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30
fps
TVI:
PAL: 4K@15 fps
NTSC: 4K@15 fps
AHD:
PAL: 4K@15 fps
NTSC: 4K@15 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

4K (3840 x 2160);
5M (2880 x 1620);
4M (2560 x 1440);
1080P (1920 x 1080);
960H (960 x 576/960 x 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Yes

Illumination Mode

Smart IR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC (-A)

Power

Power Supply

12 VDC ± 30% (It is recommended to use a

power adapter to supply the power for one camera)

Power Consumption

Max 7.9W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 104.8 mm (Φ4.80" × 4.13")

Net Weight

0.57 kg (1.26 lb)

Gross Weight

0.74 kg (1.63 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
