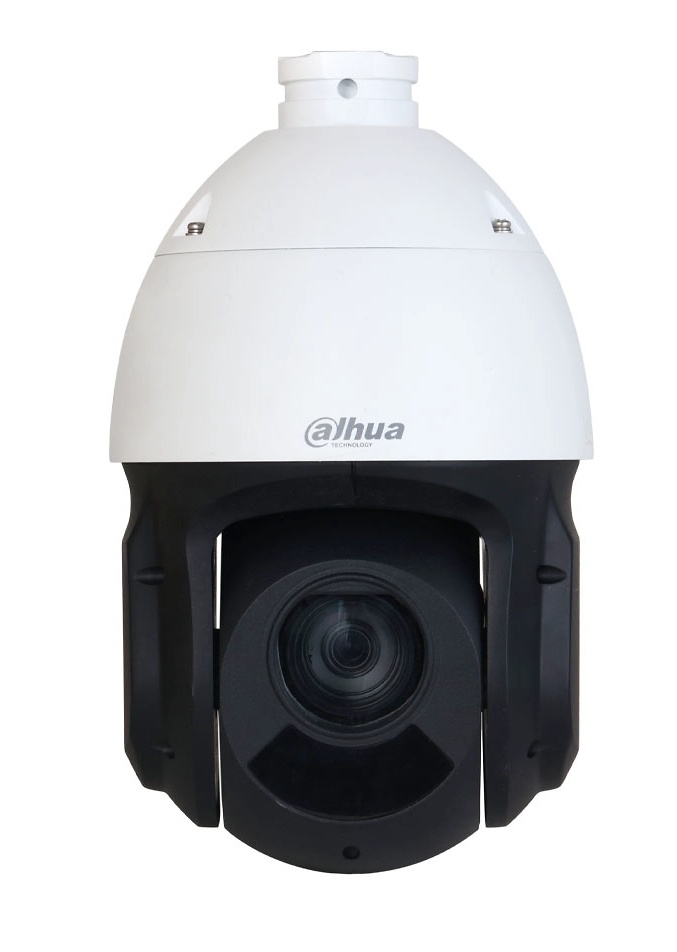

SD49425DB-HNY-GQ-EAU | DAHUA - Domo motorizado IP 4G | StarLight WizSense | 4 Mpx | Zoom 25x | Smart IR 100 metros | Audio | Alarmas | SMD Plus 3.0

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

256 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (illuminator on)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

3 (IR)

Lens

Focal Length

5 mm–125 mm

Max. Aperture

F1.6–F3.6

Field of View

H: 51.9°–3.0°;
V: 39.7°–2.2°;
D: 63.1°–3.7°

Optical Zoom

25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

2500 m (8208.10 ft)

987.5 m (3239.83 ft)

500 m (1640.42 ft)

250 m (820.21 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–80°/s

Preset Speed

Pan: 80°/s; Tilt: 80°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD Pelco-P/D(Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, capturing snapshots, and enhancing face images. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are

real-time capturing and quality first.

SMD

Yes

Video

Video Compression

H.264H; H.264B;Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)

Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)

Sub stream 2: 720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 2816 kbps–13056 kbps
H.265: 1024 kbps–7936 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Carrier Network System

4G; 3G; 2G

Wireless Carrier Frequency Band

LTE-TDD: Dual-band Band 38/40
LTE-FDD: Hepta -band Band 1/3/5/7/8/20/28
WCDMA: Tri-band Band 1/5/8
GSM: Tri-band Band 850/900/1800

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DSS; DMSS; NVR; Smart PSS; IVSS

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel

Audio Output

1 channel

Alarm Linkage

Capture; recording; send email; preset; pattern; tour; alarm digital input

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

12 VDC, 3 A (–10% to +25%)

Power Consumption

Deep sleep: 0.05 W
light sleep: 2.5 W
Basic: 3.75 W (not pulling stream in 4G); 4.54 W (pulling stream in 4G); 7.98 W (illuminator+not pulling stream in 4G); 8.77 W (illuminator+pulling stream in 4G)
Max: 15.49 W (illuminator+PTZ+pulling stream in 4G)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

270.4 mm × Φ160 mm (10.65" × Φ6.30")

Net Weight

2.6 kg (5.73 lb)

Gross Weight

4.2 kg (9.26 lb)
